技術規格單 Technical Datasheet
|
產品概覽 & 規格 (Product overview & Specification) |
|
|
|
|
|
產品名稱 Product name |

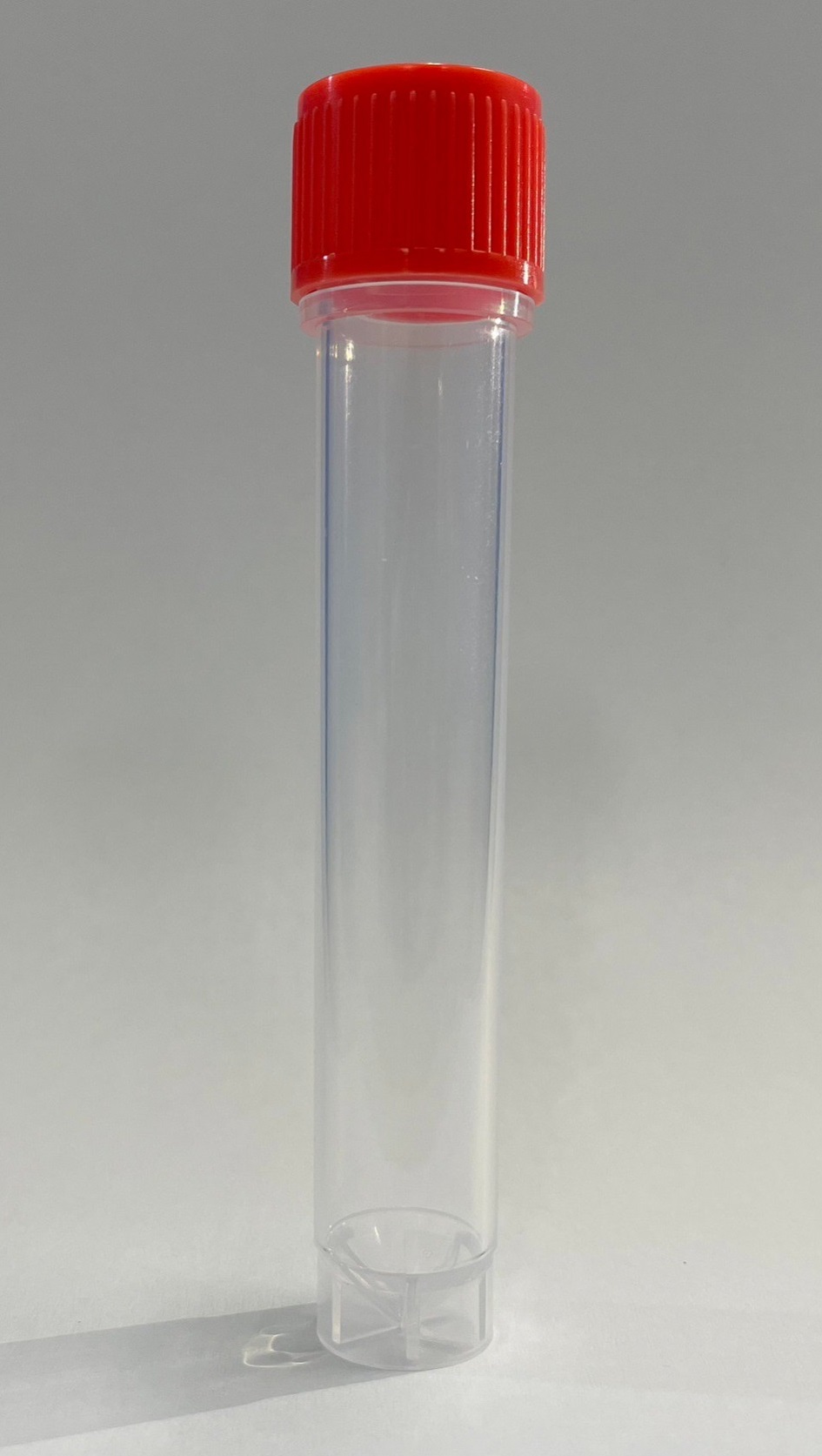

扭力型 負壓樣品保存管 10.5ml Torque-cap Vacuum Sample Preservation Tubes,10.5 ml |
|
材質特性 Material properties |
醫療級高純淨聚丙烯 (Medical Grade PP)，化學惰性極佳 Medical Grade High-Purity Polypropylene (PP) — Superior Chemical Inertness |
|
工作溫度 Operating Temperature |
-20℃ 至 121℃ (適用於超低溫冷凍及高溫高壓滅菌) -20℃~121℃ (Suitable for ultra-low temperature freezing and autoclaving) |
|
潔淨度規格 Cleanliness specifications |
RNase-free / DNase-free Meet RNase-free、DNase-free |
|
符合規範 Conform to specifications |
FDA 21 CFR 177.1520 符合食品及醫療接觸標準 Complies with FDA 21 CFR 177.1520 for food and medical contact standards. |
|
生產優勢 Production advantages |
台灣自有工廠，潔淨室生產，供貨穩定無斷貨風險 Place of Origin: Taiwan. H.M owned factory. Clean room production, stable production capacity and supply which not affected |
|
嚴格品質控管檢測 (Quality Control) |
||||||||
|
|
||||||||
|
檢測項目 A：負壓防漏測試 (Vacuum Negative Pressure Test) 合格 PASS |
||||||||
|
模擬航空運輸過程中的氣壓變化，確保試劑不外洩。 Simulate atmospheric pressure changes during air transportation to ensure zero reagent leakage
|
|
檢測項目 B：長途運輸搖晃測試 (Transportation Vibration Test) 合格 PASS |
||||||||
|
模擬長途海運或陸運震動環境，驗證瓶蓋結構的鎖合持久力。 Simulate vibration environments during long-distance oversea transportation to verify the torque retention of the cap structure
|
|
自動化生產支援 Automation Compatibility |
本產品具備標準化自動結構，支持高效能充填線：
Featuring a standardized automation-friendly design, this product supports high-efficiency filling lines:
- 相容自動化螺旋管充填專用機。
Compatible with automated screw-cap tube filling machines.
- 支援扭力型半自動鎖蓋機與旋蓋治具。
Supports semi-automatic torque capping machines and capping fixtures
- 特殊製程：Gamma 滅菌處理後材質不變黃，維持極佳透明度以便於視覺檢測。
Advanced Process: Retains high clarity without yellowing after Gamma sterilization, ensuring optimal conditions for visual inspection.
|
半自動扭力鎖蓋機 Semi automatic capping machine |
功能：1. 自動旋蓋可控制扭力
2. 自動旋蓋可控制轉速
3. 腳踏開關
尺寸：高56cm、寬25cm、深24cm
Features:
1.Torque can be controlled by the automatic screw cap
2.Automatic rotary cap to control the speed of rotation
3.Pedal switch
Size:56cm(H),25cm(W),24cm(D).
設備作動影片網址：https://www.youtube.com/shorts/5d6ZrlrJZy8
Reference：https://www.youtube.com/shorts/5d6ZrlrJZy8
※如有其他顏色需求皆可客製化※
※產品圖片顏色因電腦螢幕設定差異會略有不同，請以實際商品顏色為準※
